EOS ThermoTec S

floor-standing

Sauna heater for private sauna cabins. Floor-standing model.

Middle class sauna heater for the Finnish (dry) sauna. Floor-standing model with an elegant, curved shape die-cast aluminium top, stainless steel inner shell and outer shell in anthracite pearl effect finish. Rock store made of stainless steel with adjustable volume. Terminal box at the rear.

Rock store fits up to 18 kg stones.

Notice: Heater must be mounted to the cabin wall.



Power Item no.
6,0 kW 945684
7,5 kW 945685
9,0 kW 945686

  • Floor-standing version based on the ThermoTec W model.
  • Durable sauna heater for the dry Finnish sauna.
  • With an elegant, curved die-cast aluminium top cover.
  • With optional, integrated holders for essences or aroma tray.
  • Stainless steel inner shell, reinforced construction.
  • Rock store fits up to 18 kg stones.

Electrical connection

400 V 3N ~ 50/60 Hz

Fuse protection (control unit)

3 x 16 A

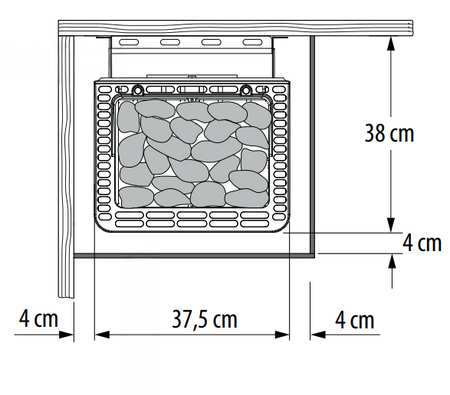

Dimensions H/W/D, in cm

78 / 37,5 / 36

For sauna cabin size (6,0 / 7,5 / 9,0 kW)

6 - 8 m³ / 7 - 10 m³ / 9 - 14 m³

Min. size air inlet and outlet (6,0 / 7,5 / 9,0 kW)

35 x 4 cm / 35 x 5 cm / 35 x 6 cm

Weight withouth rocks (6,0 / 7,5 / 9,0 kW)

11,0 kg / 11,0 kg / 12,5 kg

Stone filling

18 kg

Power extension required

no
