EOS EmoTec D

Control unit, dry Finnish sauna

Premium-class digital sauna control unit for the dry (Finnish) sauna.

Advanced control unit for private and commercial operation with a remote control panel and a separate relay box. Includes digital sensor with 5 m cable. Innovative operation concept with jog-dial switch, quick access to all functions. The display panel may be installed remotely at up to 100 m distance. Modern TFT colour display with menu navigation in 19 languages.

Item no.

945559 - EOS EmoTec D anthracite / silver

946053 - EOS EmoTec D white / silver

947256 - EOS EmoTec D anthracite / black

EOS EmoTec D anthracite / silver

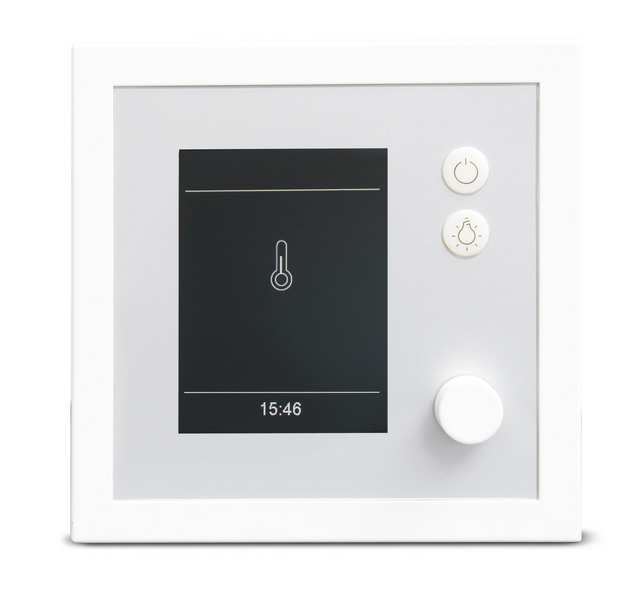

EOS EmoTec D white / silver
EOS EmoTec D anthracite / black

Also available for North America

Features and benefits

Premium class digital control unit for very demanding private and commercial saunas.
Compact-size control panel with a TFT colour display with flush-mounted or surface-mounted installation.
Digital temperature control range: 30°C - 115°C.
Display panel available in anthracite, black or white design.
Menu navigation in 19 languages (DE, EN, FR, RU, ES, NL, IT, PL, SLO, FIN, TR, CZ, RO, BG, HU, HR, SK, DK).
Innovative operation with jog-dial switch - simple, easy, intuitive.
With a separate slim-size display panel (can be installed up to 100 m away from the sauna).
Dimmable cabin light output 230V, automatic detection of inductive and capacitive loads.
Output for ventilation fan 230V (3 speeds).
24 h pre-set timer and extended week timer (4 programs per day possible).
Heating time limitation 6 h / 12 h / unlimited.
Display panel with screen saver and sleep mode.
Holiday home mode and display lock per pin code.
Pin code protected service level for setup and fine-tuning.
Volt-free output.
Digital type sensor for precise and interference-resistant control. Bench sensor optionally available.
Quick check for pre-set and real temperature in the sauna.
Digital microchip based temperature sensor with 5 m cable.
Firmware can be updated with a micro SD card (not included).
Additional control features through optional extensions: coloured light control for LED, music control, remote start and operation.

Technical specifications

Electrical connection	400 V 3N ~ 50/60 Hz
Power output	10,0 kW (extension possible with LSG: LSG 10 / LSG 18 / LSG 36)
Temperature control range	30 - 115 °C
Heating time limitation	6 h, 12 h, unlimited
Start time pre-selection	24 h real time or week timer
Cabin light output	230 V, dimmable. Resistive, capacitive, inductive load
Fan output	230 V / max. 150 W, adjustable speed
Sensor system	Digital, inc. 5 m cable. 2nd sensor optional.
Control panel (H/W/D)	127 x 130 x 25 mm flush-mounting or surface-mounting
Relay box (H/W/D)	270 x 300 x 100 mmwall-mounting
