EOS Gracil

floor-standing

Versatile sauna heater for the (dry) Finnish sauna.

Floor-standing model for private sauna cabins. Very space-saving construction - only 25 cm depth! Thanks to the recessed terminal box can be installed in front of glass panels. EOS Gracil is characterized by a robust construction and a straightforward design so that it fits very well for modern, high-quality saunas.

Durable triple-shell construction. Anthracite pearl effect finish. Brushed stainless steel top cover.

Rock store fits up to 20 kg stones.

Also available with high-quality matt black finish*

Optional: Wooden guard rail with mounting brackets, rear wall cover panel

Power	Item no.
4,5 kW	947904
6,0 kW	946755
7,5 kW	946756
9,0 kW	946757
4,5 kW - black*	947906
6,0 kW - black*	948196
7,5 kW - black*	947243
9,0 kW - black*	947244

EOS Gracil black
Guard rail optional
EOS Gracil black - Guard rail optional
rear wall cover panel optional
rear wall cover panel (black) optional

Also available as Bi-O version:

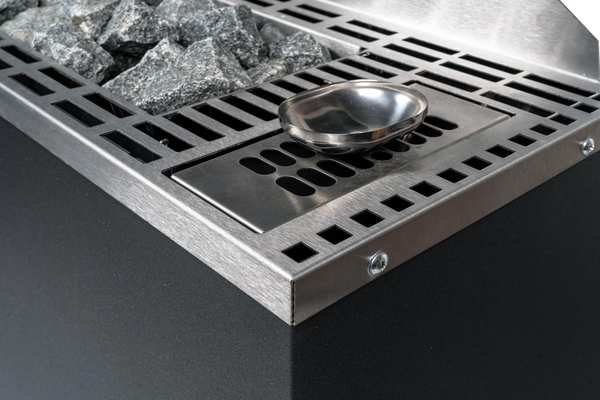

EOS Bi-O Gracil

Also available for North America

Your advantages

Very space-saving, slim design - ideal for small, compact size saunas – only 25 cm depth.
Flat back - optimal for the placement in front of glass.
Optional rear wall cover panel in anthracite pearl effect finish.
Optional wooden guard rail.

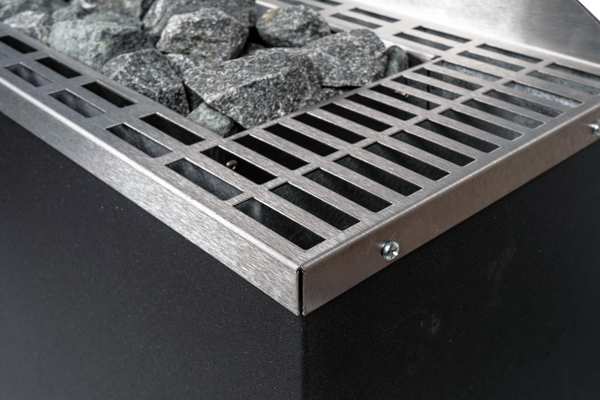

Stylish brushed stainless steel top cover.
Outer shell in anthracite pearl effect finish.
Flat rear wall with flush-mounted terminal box.

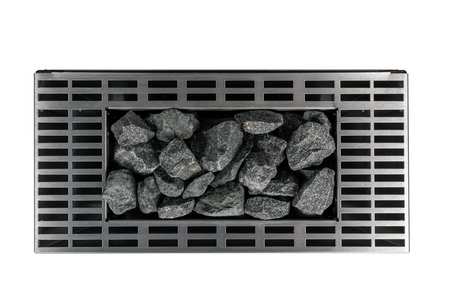

Rock store fits up to 20 kg stones.

Technical specifications

Electrical connection	400 V 3N ~ 50/60 Hz
Fuse protection (control unit)	3 x 16 A
Dimensions H/W/D, in cm	76 / 50,5 / 25
For sauna cabin size (4,5 / 6,0 / 7,5 / 9,0 kW)	4 - 6 m³ / 6 - 8 m³ / 7 - 10 m³ / 9 - 14 m³
Min. size air inlet and outlet (4,5 / 6,0 / 7,5 / 9,0 kW)	35 x 4 cm / 35 x 5 cm / 35 x 6 cm / 35 x 6 cm
Weight withouth rocks (4,5 / 6,0 / 7,5 / 9,0 kW)	20,0 kg / 20,5 kg / 21,0 kg / 21,5 kg
Stone filling	20 kg
Power extension required	no
