EOS Cubo 2

floor-standing

Best EOS engineering in a new design

The EOS Cubo 2 is characterized by attractive details such as the new top cover designs, which can be individually selected. The new design is rounded off with an extended outer shell and the now included rear wall cover panel in the colour of the outer shell for more flexibility and a 360°-look.

Suitable for private and commercial saunas with a cabin size of 7 - 18 m³.

The high-quality floor-standing heater in modern cubistic design for the Finnish (dry) sauna is based on the proven Cubo construction and is available with brushed stainless steel top and outer shell in anthracite pearl effect or completely with high-quality matt black finish.

Robust, durable construction made of stainless steel wth space-saving design – only 40 x 39 cm foot-print. Thanks to the included rear wall cover panel with recessed terminal box, EOS Cubo 2 is ideal for installations in front of glass panels. Service-friendly construction: no contact between heating elements and stones, replacement of heating elements without stone removal possible. Optimized air convection and rock store volume for effective heat-up times and powerful sauna infusions.

Rock store fits up to 25 kg stones.

Optional: safety guard rail and mounting brackets, EOSafe L safety system, EOS Scent Trophy essence bowl.

360° Look

EOS Cubo 2 anthracite - Styling 1
EOS Cubo 2 anthracite - Styling 1
EOS Cubo 2 anthracite - Styling 1 – Rear wall cover panel included.
EOS Cubo 2 anthracite - Styling 2
EOS Cubo 2 anthracite - Styling 2
EOS Cubo 2 anthracite - Styling 2 – Rear wall cover panel included.
EOS Cubo 2 black - Styling 1
EOS Cubo 2 black - Styling 1
EOS Cubo 2 black - Styling 1 – Rear wall cover panel included.
EOS Cubo 2 black - Styling 2
EOS Cubo 2 black - Styling 2
EOS Cubo 2 black - Styling 2 – Rear wall cover panel included.

Also available as Bi-O version:
EOS Bi-O Cubo 2

For a safe sauna experience

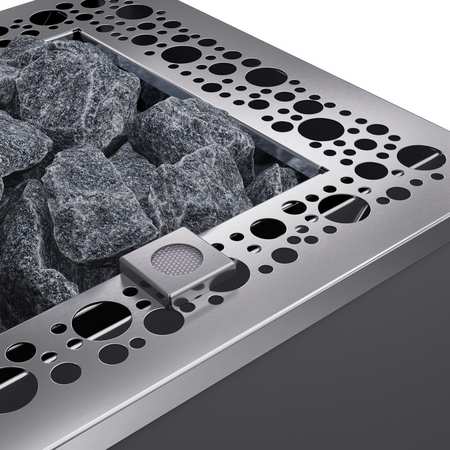

EOS Cubo 2 anthracite - Styling 1. EOSafe L safety system optional

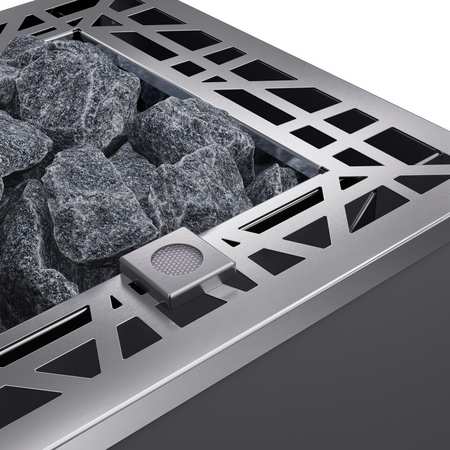

EOS Cubo 2 anthracite - Styling 2. EOSafe L safety system optional
EOS Cubo 2 black - Styling 1. EOSafe L safety system optional

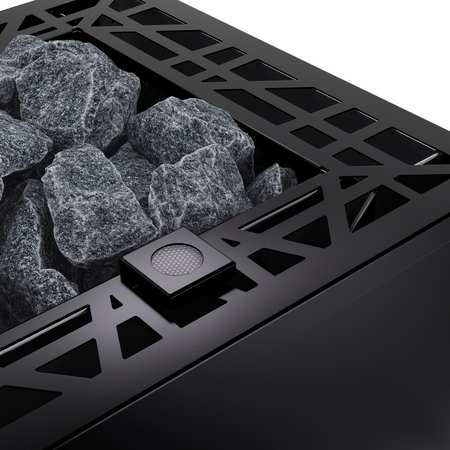

EOS Cubo 2 black - Styling 2. EOSafe L safety system optional

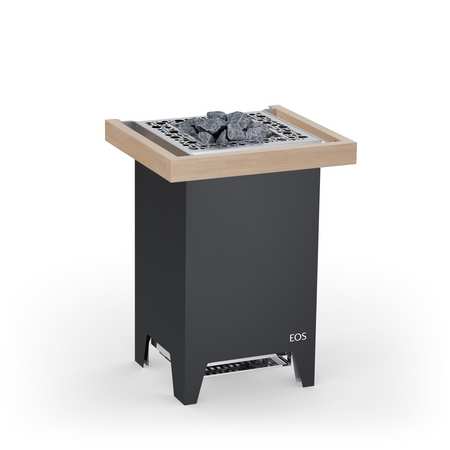

EOS Cubo 2 anthracite - Styling 1. Wooden guard rail with mounting brackets.

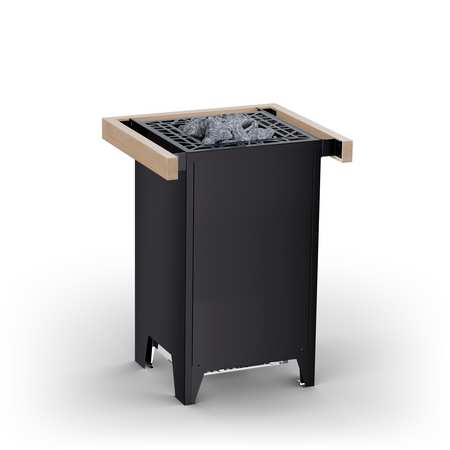

EOS Cubo 2 black - Styling 2. Rear wall cover panel included. Wooden guard rail with mounting brackets optional.

Suitable essence bowl

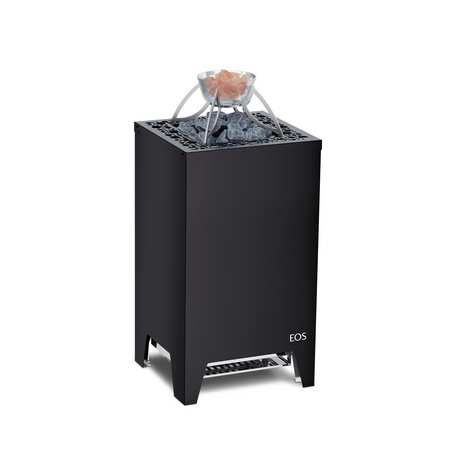

EOS Cubo 2 black - Styling 1. Essence bowl "EOS Scent Trophy S" upon request.

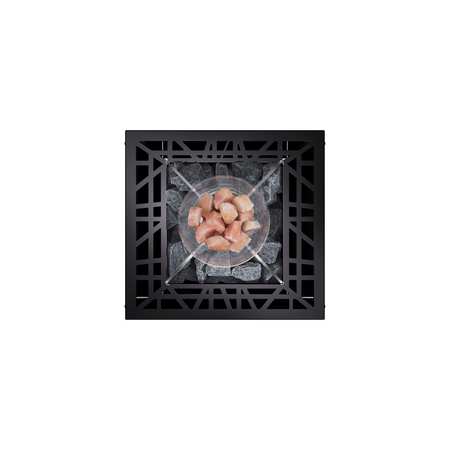

EOS Cubo 2 black - Styling 2. Essence bowl "EOS Scent Trophy S" upon request.

EOS Cubo 2

Power		Item no.
7,5 kW	Styling 1	948890
9,0 kW	Styling 1	948891
10,0 kW	Styling 1	948892
12,0 kW	Styling 1	948893
7,5 kW	Styling 2	948898
9,0 kW	Styling 2	948899
10,0 kW	Styling 2	948900
12,0 kW	Styling 2	948901

EOS Cubo 2 black

Power		Item no.
7,5 kW	Styling 1	948894
9,0 kW	Styling 1	948895
10,0 kW	Styling 1	948896
12,0 kW	Styling 1	948897
7,5 kW	Styling 2	948902
9,0 kW	Styling 2	948903
10,0 kW	Styling 2	948904
12,0 kW	Styling 2	948905

EOS Cubo 2 anthracite - Styling 1 – round holes
EOS Cubo 2 anthracite - Styling 2 – structure
EOS Cubo 2 black - Styling 1 – round holes
EOS Cubo 2 black - Styling 2 – structure

Your advantages

Very elegant, contemporary design with fully redesigned body and top cover in two stylings.
Available with classic anthracite or with matt black finish.
Proven, highly durable and long-lasting construction.
Optimal relation between stone volume and air convection system for fast heat-up times and powerful water splashes.
Same appearance on all sides thanks to the integrated rear side cover panel in matching finish.
Easy to service - heating elements without contact to stones. Rock store above the heating block.
Compact, place-saving size – only 38.5 cm depth

Technical specifications

Electrical connection	400 V 3N ~ 50/60 Hz
Fuse protection (control unit)	3 x 16 A
Fuse protection (LSG)	no / 3 x 16 A (only 12,0 kW)
Dimensions H/W/D, in cm	72 / 40 / 38,5
For sauna cabin size (7,5 / 9,0 / 10,0 / 12,0 kW)	7 - 10 m³ / 9 - 14 m³ / 11 - 15 m³ / 14 - 18 m³
Min. size air inlet and outlet (7,5 / 9,0 / 10,0 / 12,0 kW)	35 x 5 cm / 35 x 6 cm / 35 x 6 cm / 35 x 7 cm
Weight withouth rocks	27,5 kg
Stone filling	25 kg
Power extension required	no / LSG 10 (only 12,0 kW)
