EOS Mythos S45

floor-standing

Exclusive sauna heater that is perfect for commercial saunas.

The rock store holds up to 45 kg of stones.

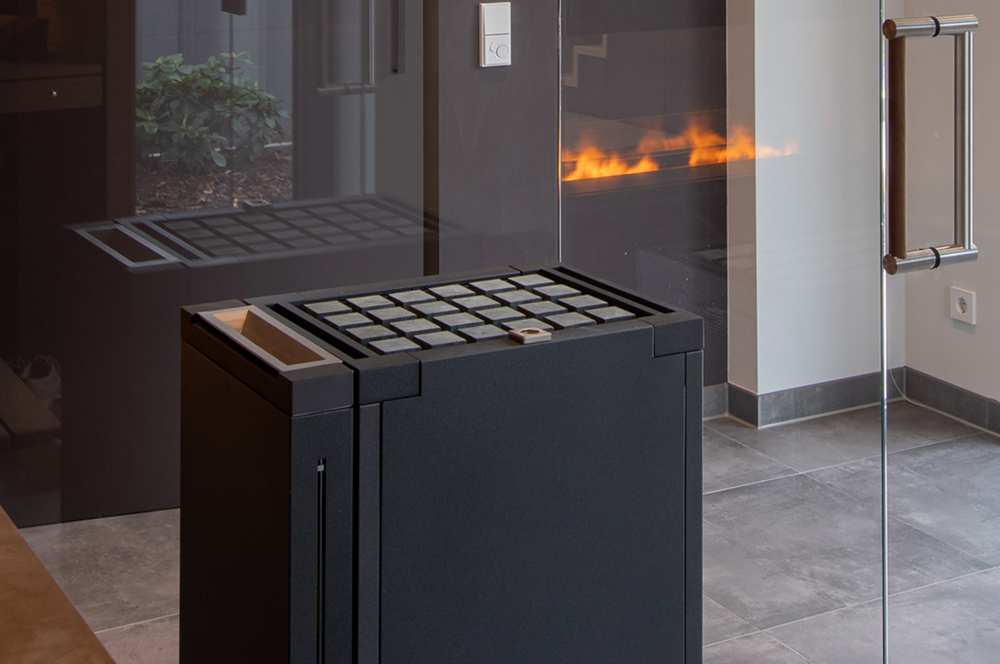

The accented minimalist style cubist design is perfectly complemented by the innovative pedestal. Thanks to the flat reverse side in matching design, this heater is ideal for placement directly in front of glass surfaces or in the middle of the sauna cabin.

The special highlight are the optional unique Cubius stones that perfect the design of the heater.

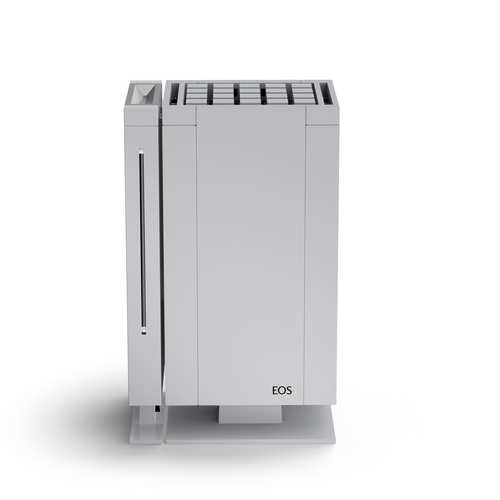

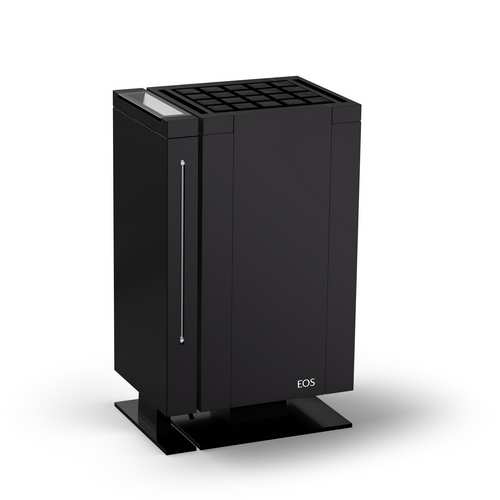

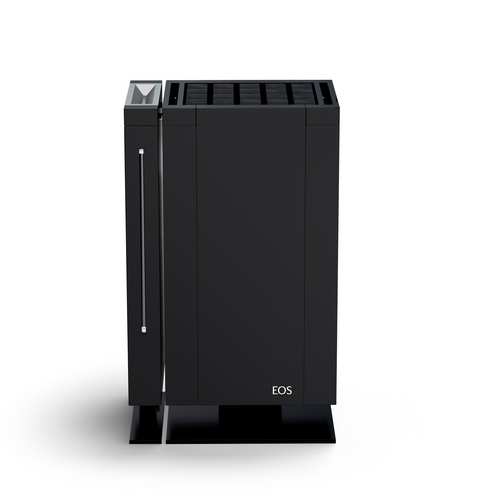

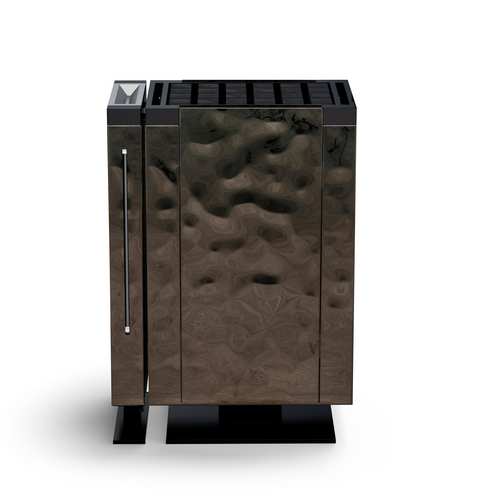

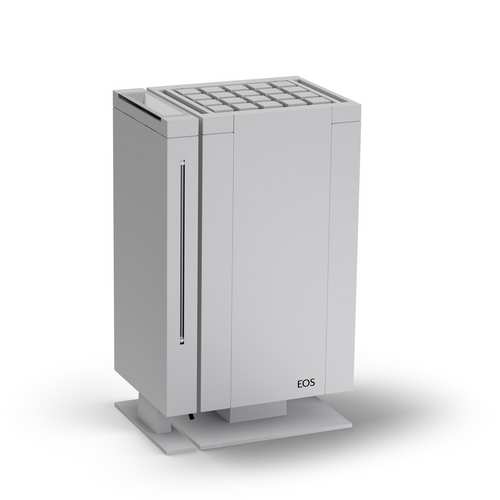

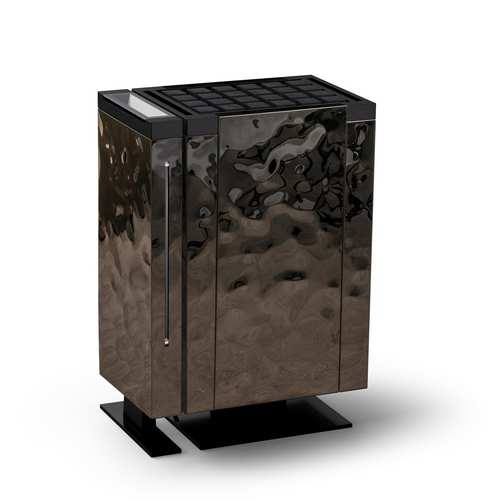

Thanks to an optional vaporizer (2,0 kW or 3,0 kW), EOS Mythos can also be used as Bi-O version for humid sauna operation.

The variety of exclusive finishes and stone designs set no borders to creativity in order to turn a good sauna into a design masterpiece.

Optional: Cubius stones, Cubius Loop stones, heater guard rail with mounting brackets.

Power	Item no.
12,0 kW	945490	Anthracite
15,0 kW	945491	Anthracite
12,0 kW	945583	CRS
15,0 kW	945584	CRS

EOS Mythos S45 anthracite – Anthracite pearl effect design with optional Cubius stones.
EOS Mythos S45 anthracite – Anthracite pearl effect design
EOS Mythos S45 CRS – brushed stainless steel front with optional Cubius stones
EOS Mythos S45 CRS – brushed stainless steel front
EOS Mythos S45 CRS – brushed stainless steel front
EOS Mythos S45 CRS – brushed stainless steel front with optional Cubius stones
EOS Mythos S45 anthracite – Anthracite pearl effect design with optional Cubius stones.

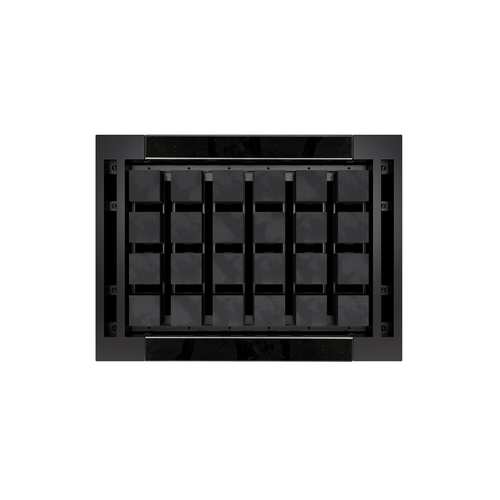

With optional Cubius stones.

Your advantages

Exclusive design in two versions: brushed stainless steel front or completely in anthracite pearl effect coating.
Unique Cubius design stones (optional) in various heights.
Durable, long-lasting construction, all made of stainless steel.
Large 45 kg rock store for optimal heat storage and effective water evaporation.
Slim, space-saving construction – only 37 cm depth.
Easy to service, rock store above heating elements.

Technical specifications

Electrical connection	400 V 3N ~ 50/60 Hz
Dimensions H/W/D, in cm	84 / 50 / 37
For sauna cabin size (12 / 15 kW)	14 - 18 m³ / 18 - 25 m³
Min. size air inlet and outlet (12 / 15 kW)	35 x 7 cm / 35 x 9 cm
Fuse protection control unit	3 x 16 A
Fuse protection PEB unit	3 x 16 A
Weight withouth rocks	40 kg
Stone filling	45 kg
Power extension required	PEB 10
