EOS EmoTec H
Sauna control unit
High-class digital sauna control unit for dry and humid sauna operation (for heaters with vaporizer).
The advanced control unit combines smart features and cutting-edge technology with simplicity and comfort in use, setting the quality benchmark both in the private and in the commercial sector.
The EOS EmoTec H is for dry and humid sauna operation (for heaters with vaporizer) and consists of a remote control panel, a separate relay box and a digital temperature sensor with high limiter fuse.
-
EOS EmoTec H Anthracite / silver -
EOS EmoTec H Anthracite / black -
EOS EmoTec H White / silver -

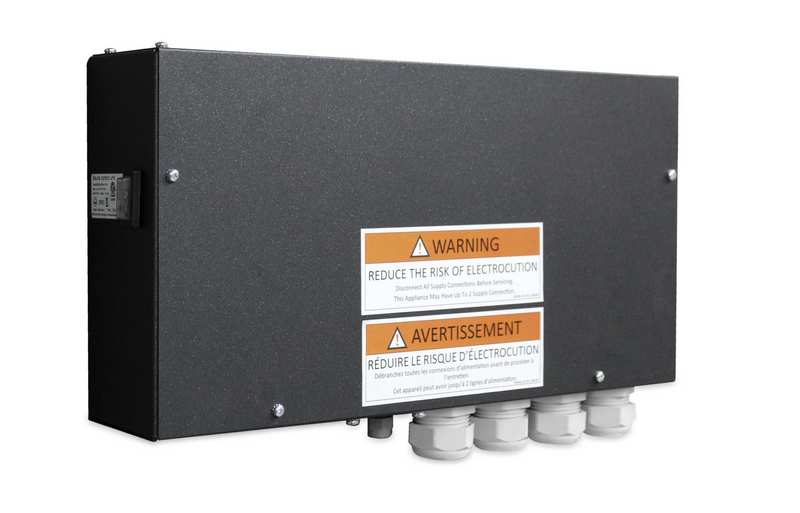

Relay box
Also available for solely dry sauna operation:
EOS EmoTec D
- High-class digital control unit for very demanding private and commercial saunas.
- Compact-sized control panel with a TFT color display with flush-mounted or surface-mounted installation.
- Digital temperature control range: 85 - 194 °F / 30 - 90 °C.
- Multilanguage menu navigation (19 languages).
- Innovative operation with jog-dial switch – simple, easy, intuitive.
- Control panel installation at up to 328 ft / 100 m distance possible.
- Cabin light output
- Output for ventilation fan.
- Control panel with screen saver and sleep mode.
- Holiday home mode and display lock per pin code.
- Pin code protected service level for setup and fine tuning.
- Quick check for pre-set and real temperature in the sauna.
- Firmware can be updated with a micro SD card (not included).
- Heating time limitation:
• 1 h (USA)
• 6 h / 12 h / unlimited (CAN) - Power supply:
• 9 kW: 240 V 2N AC 60 Hz
• 9 kW: 208 V 3N AC 60 Hz
• 15 kW: 208 V 3N AC 60 Hz - Humidity control: allows constant steam production per given time or with an optional humidity sensor as per relative air humidity (allows exact humidity setting per rel. air humidity in %).
- After-heating (sauna dry program after humid mode)
- Adjustable after-heating temperature
- Adjustable after-heating extractor fan speed
- Adjustable after-heating time
- Adjustable grace time for refilling the water tank by low level
- Smart-Heat function heats up the sauna faster and prevents that the steam production starts while the sauna is not yet well heated
Electrical connection | 15 kW: 208 V 3N AC 60 Hz |
Temperature control range | 30 - 90 °C / 85 - 194 °F – Finnish (dry sauna mode) 30 - 70 °C / 85 - 158 °F – Bi-O (humidity mode) |
Cabin light output | min. 5 W, max. 100 W |
Fan output | min. 5 W, max.150 W |
Sensor system | Digital sensor 90 °C / 194 °F with safety temperature limiter |
Control panel (H/W/D) | 127 x 130 x 25 mm / 5 x 5.1 x 1 inches |
Relay box (H/W/D) | 250 x 485 x 100 mm / 9.8 x 19 x 3.9 inches |
Power | Item no. |
USA/CAN: 208 V 3N AC 60 Hz , 9.0 kW | 947771 |
USA/CAN: 208 V 3N AC 60 Hz , 15.0 kW | 947770 |
USA/CAN: 240 V 2N AC 60 Hz , 9.0 kW | 947772 |
Control panel designs
Anthracite / silver
Description | Item no. |
EOS EmoTec USA control panel anthracite | 947769 |
EOS EmoTec CAN control panel anthracite | 947785 |
Anthracite / black
Description | Item no. |
EOS EmoTec USA control panel black | 948198 |
EOS EmoTec CAN control panel black | 948199 |
White / silver
Description | Item no. |
EOS EmoTec USA control panel white | 948200 |
EOS EmoTec CAN control panel white | 948201 |
