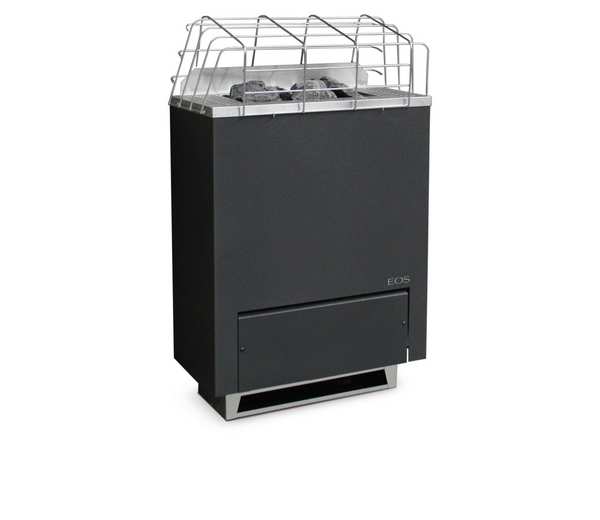

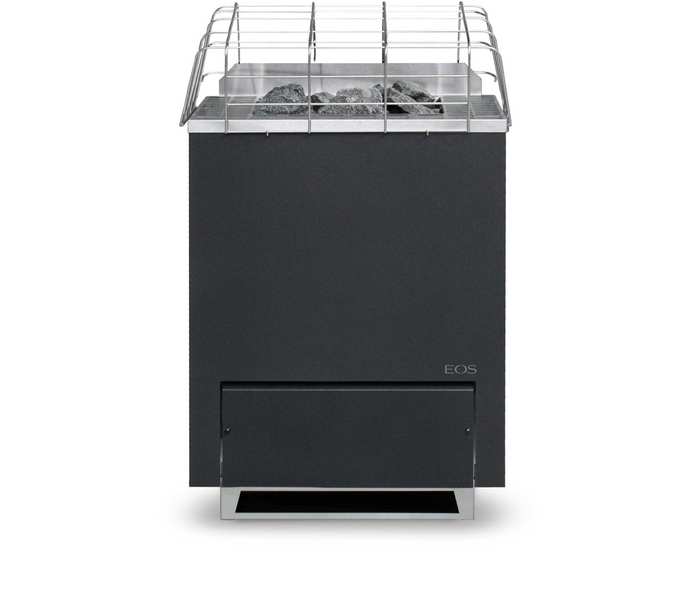

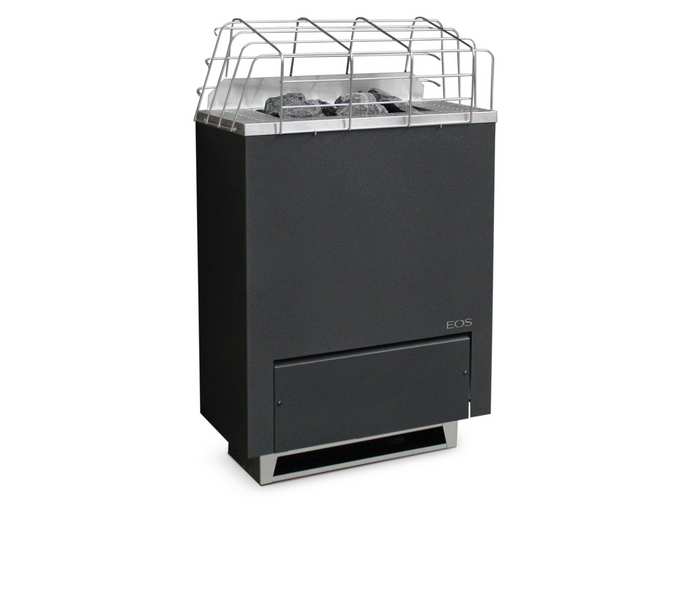

EOS Gracil W
Finnish sauna heater
Slim-depth sauna heater for the (dry) Finnish sauna.
The EOS Gracil W impresses with its very space-saving design and is ideal for use in private saunas. Only 27.5 cm / 0.9 ft total depth (incl. 3 cm / 0.1 ft wall gap).
Thanks to its sleek, straight-lined design, the wall-mounting model is perfectly suited for modern upper-class saunas.
Elegant brushed stainless steel top cover. Outer shell in anthracite pearl effect finish – also available with noble matt black finish.
Full size rock store with up to 44 lbs / 20 kg volume.
Accessories: Safety guard rail with mounting brackets optionally available.
-
-

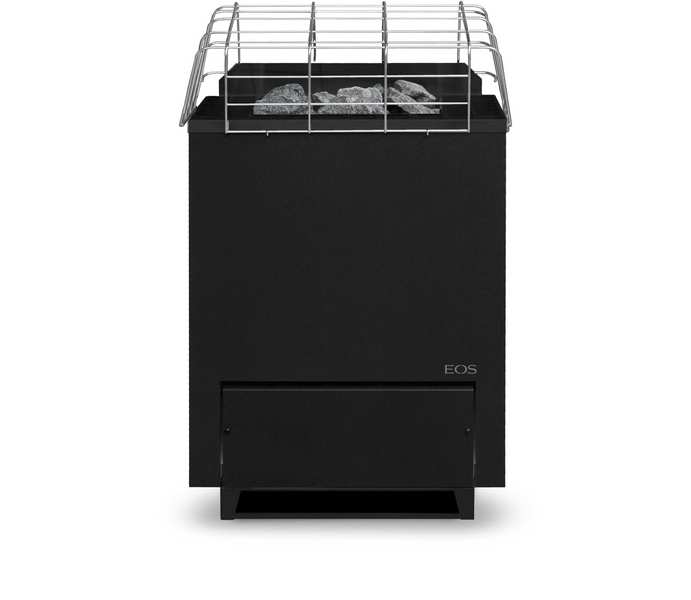

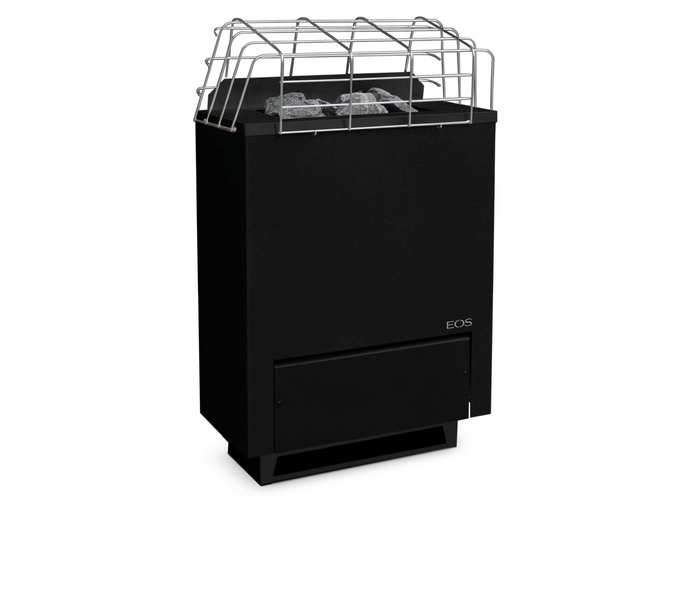

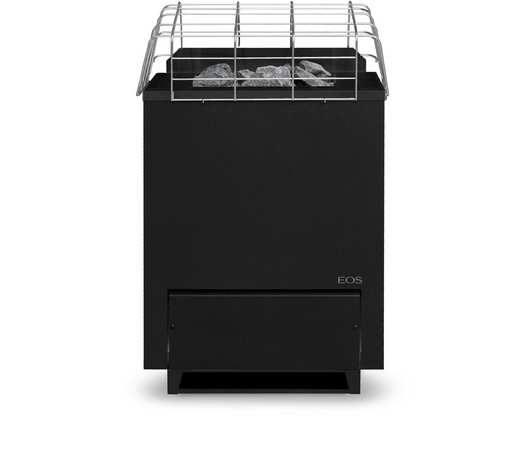

EOS Gracil W black -
-
EOS Gracil W black -
EOS Gracil W cover protection -
-
Also available as floor-standing model:
EOS Gracil
- Very space-saving, slim design - ideal for small, compact size saunas – only 0.9 ft / 27.5 cm depth.
- Flat rear side with recessed terminal box, only 0.1 ft / 3 cm gap to the wall.

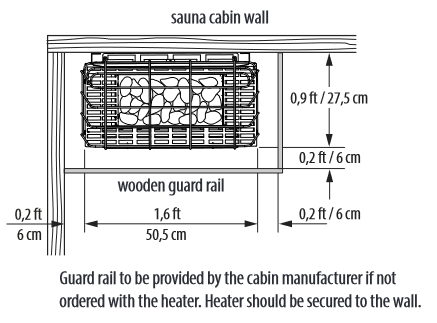

- Optional wooden safety guard rail.
- Stylish brushed stainless steel top cover.
- Dust & debris collecting tray at the bottom to keep the sauna clean.
- Rock store fits up to 44 lbs / 20 kg stones.
Electrical connection | 240V 2PH / 208V 3PH AC 60 Hz |
Dimensions H/W/D | 74 x 50.5 x 27.5 cm / 2.4 x 1.6 x 0.9 ft |
For sauna cabin size | 3.2 - 4.5 sq m x 1.90 m (6.0 kW) 34.4 - 48.4 sq ft x 6.2 ft 4.2–6.3 sq m x 1.90 m (7.5 kW) 45.2-67.8 sq ft x 6.2 ft 4.7–7.4 sq m x 1.90 m (9.0 kW) 50.5-79.7 sq ft x 6.2 ft |
Min. size air inlet and outlet | 35 x 5 cm (6.0 kW & 7.5 kW) 1,2 x 0,2 ft 35 x 6 cm (9.0 kW) 1,2 x 0,3 ft |
Weight withouth rocks (6.0 / 7.5 / 9.0 kW) | 20.5 kg / 21.0 kg / 21.5 kg 45,2 lbs / 46,3 lbs / 47,7 lbs |
Stone filling | 20 kg / 44 lbs |
EOS Gracil W (208V / 240V)
Power | Item no. |
6,0 kW | 947537 / 947540 |
7,5 kW | 947538 / 947541 |
9,0 kW | 947539 / 947542 |
EOS Gracil W black (208V / 240V)
Power | Item no. |
6,0 kW | 947991 / 947994 |
7,5 kW | 947992 / 947995 |
9,0 kW | 947993 / 947996 |
